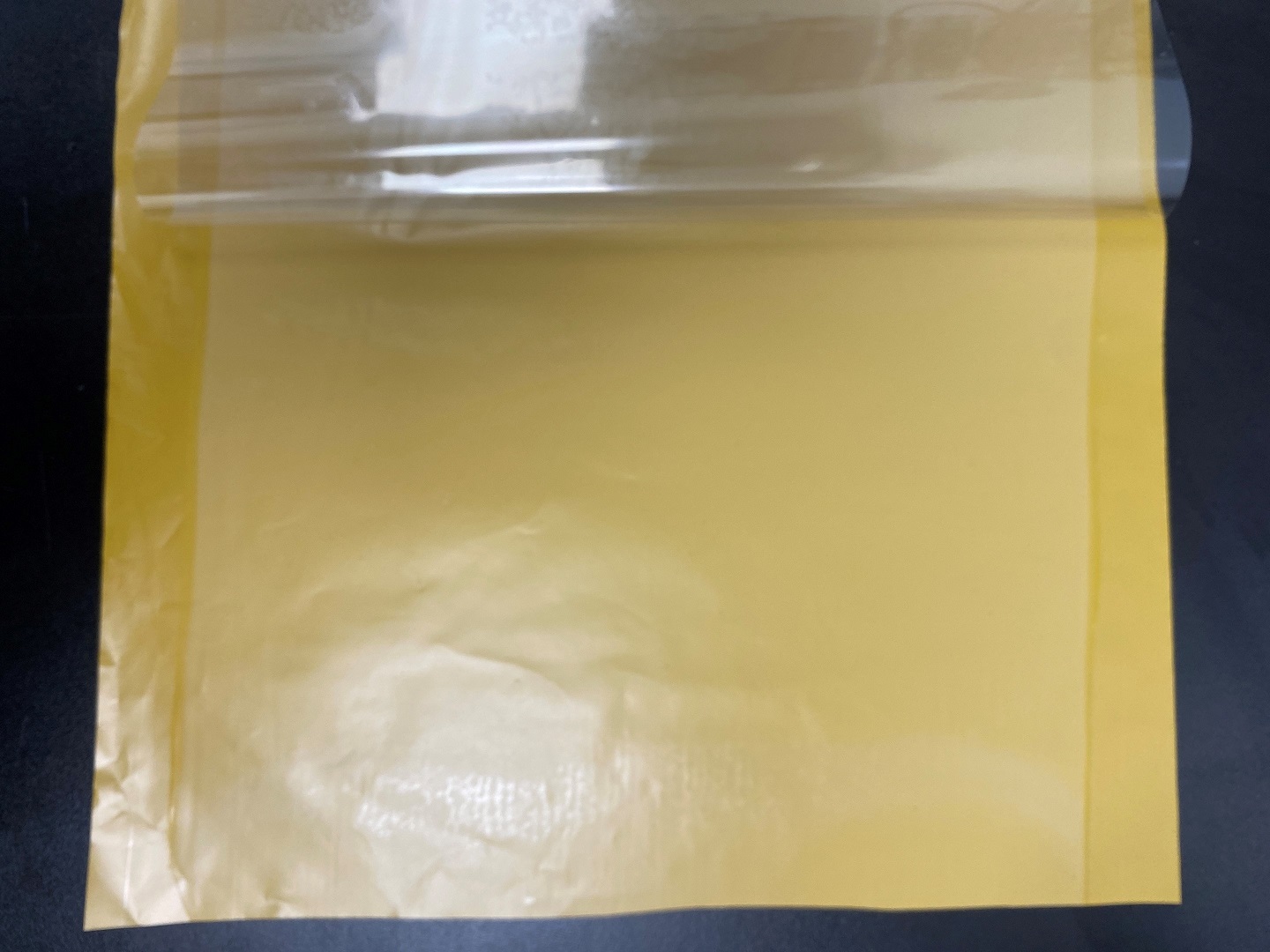

TTP series is a PI film based electrically insulated thermal conductive film tape. It has good voltage resistance, thermal stability, chemical stability and weather resistance. This product is recommended to use in high voltage electronic devices.
|
Item |
Unit |
TTP1740 |
TTP1750 |
TTP1760 |
TTP1965 |
TTP1975 |
TTP1985 |
Test Method |
|
Color |
/ |
Yellow |
Yellow |
Yellow |
Yellow |
Yellow |
Yellow |
Visual |
|
Adhesive Thickness |
um |
15 |
25 |
35 |
15 |
25 |
35 |
ASTM D374 |
|
PI Thickness |
um |
25 |
25 |
25 |
50 |
50 |
50 |
|
|
Breakdown voltage |
KV |
≥6.3 |
≥6.3 |
ASTM D792 |
||||
|
Thermal conductivity |
W/m·K |
1.7 |
1.9 |
ISO22007 |
||||
|
Tensile strength |
MPa |
≥12 |
≥12 |
ASTM D412 |
||||
|
Elongation |
% |
≥50 |
≥50 |
ASTM D412 |
||||
|
Operating temperature |
℃ |
-25~180 |
-25~180 |
/ |
||||
• Excellent thermal conductivity
