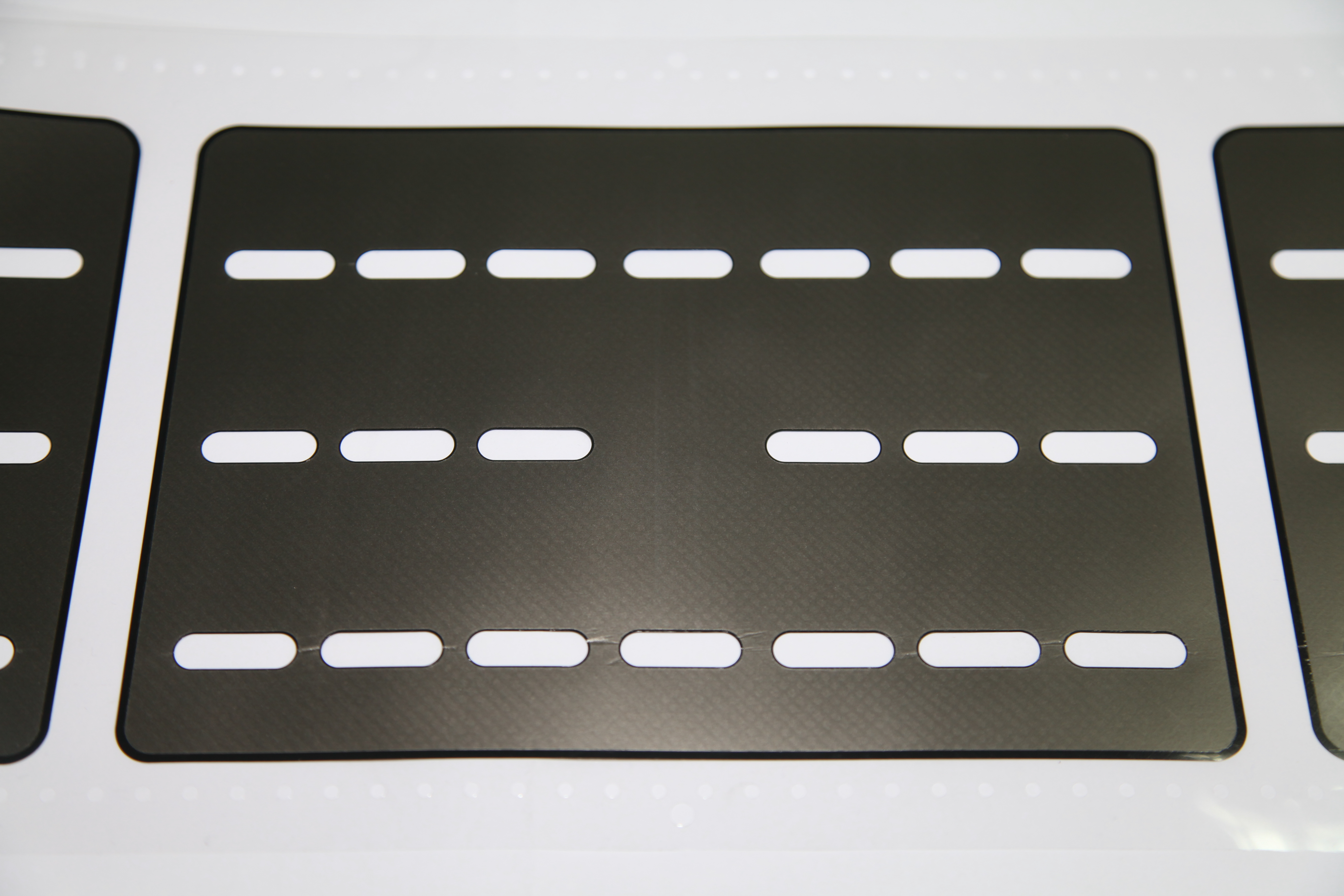

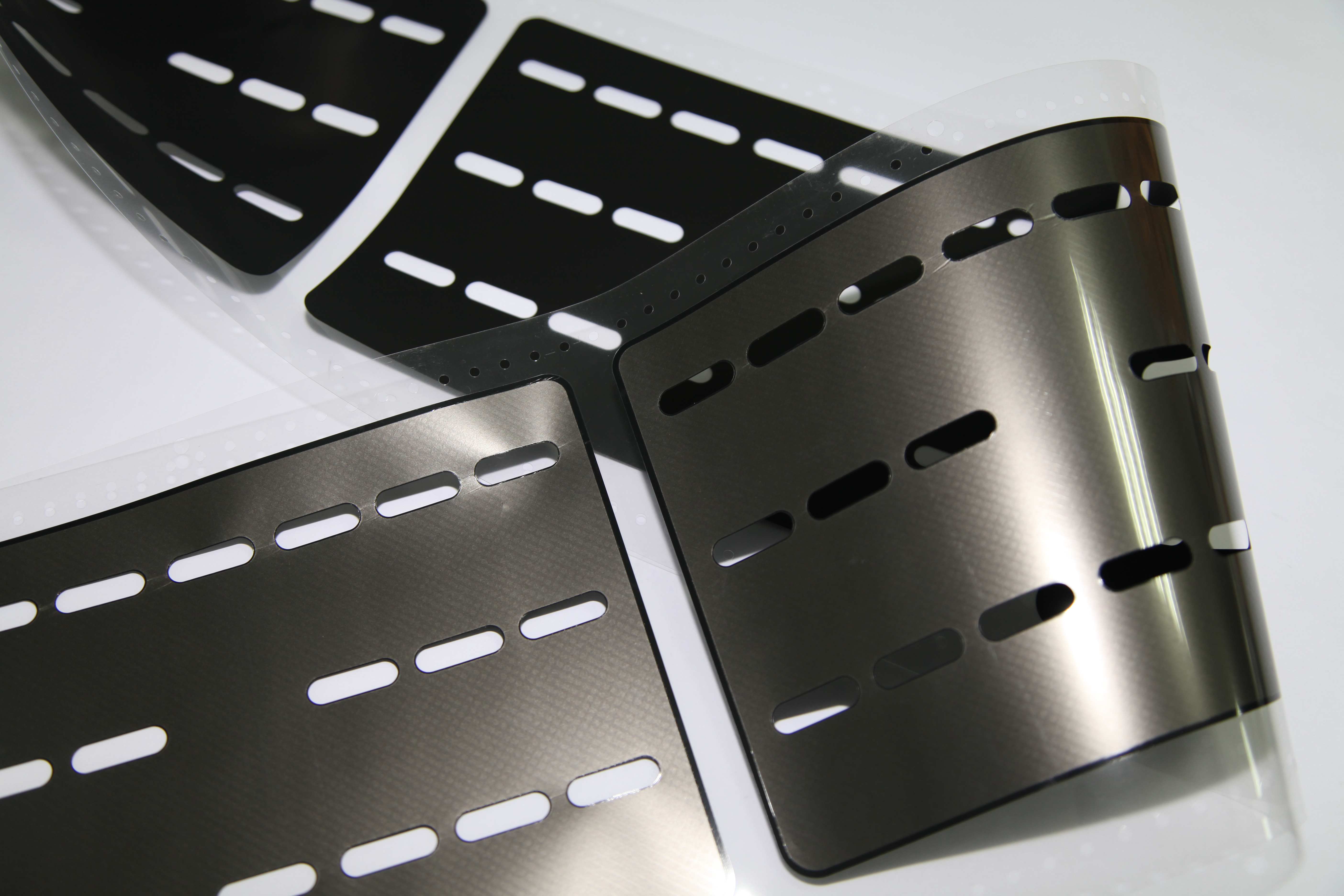

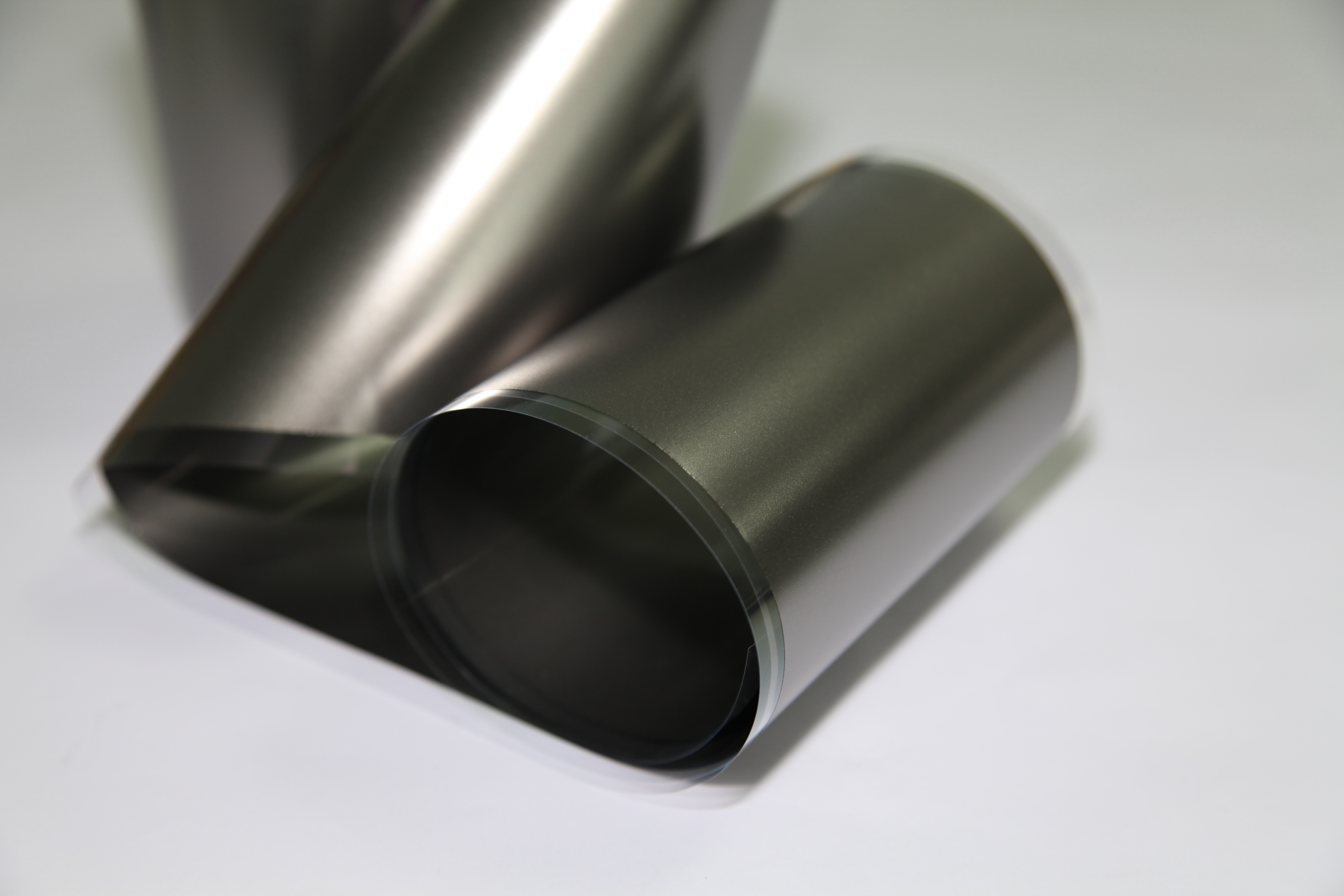

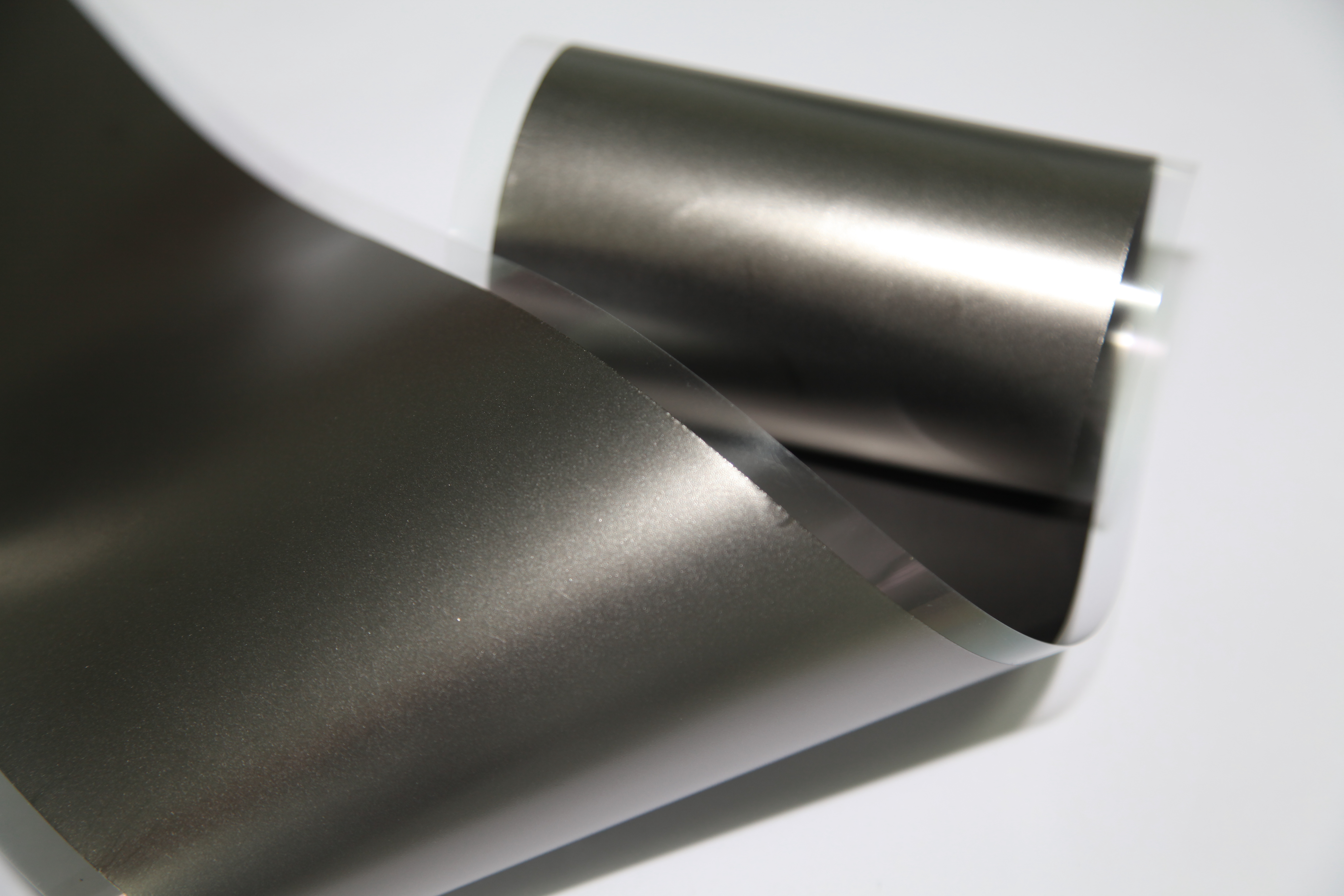

PolyplateTM TPG Series Thermal Spreading Sheet is a specially designed composite thermal material which has a distinct structure of different functional layers for thermal solutions. It provides excellent heat conducting, spreading and cooling performance.
| Item | Unit | Data | Test Method | |
|---|---|---|---|---|
| Standard Thickness |
Nano Coating Polyester Thermally Conductive Adhesive |
mm | 0.006-0.01 | ASTM D374 |
| Graphite | 0.03-0.5 | |||
| Thermally Conductive Adhesive | 0.003-0.01 | |||
| Total Thickness | 0.039-0.52 | |||
| Thermal Conductivity of Graphite Sheet | W/m·K |
In-plane: 200~500 Vertical: 1.5~10 |
ASTM E1461 | |
| Infrared Emissivity of Nano Radiating Coating | W/m² | 0.95 | ASTM C1371 | |
| 180° Peel Strength @ SUS | N/25mm | > 5 | ASTM D3330 | |
| Volume Resistivity | Ω·cm | 1.0×10¹² | ASTM D257 | |
| Dielectric Strength | KV/mm | > 2 | ASTM D149 | |
| Continuous Use Temperature | °C | -20~120°C | / | |
* The thickness of adhesive can be customized
