Thermal Interface Materials (TIMs)
EMI Shielding and Grounding Tapes

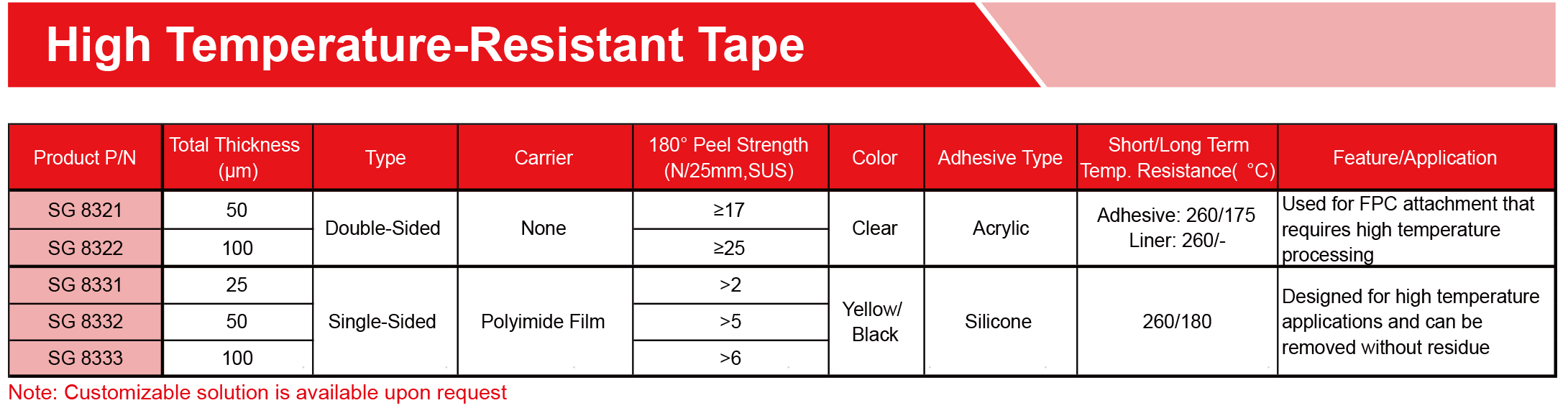

| Product P/N |
Total Thickness (μm) |
Type | Carrier |
180° Peel Strength (N/25mm,SUS) |
Color | Adhesive Type |
Short/Long Term Temp. Resistance ( °C) |
Feature/Application |
|---|---|---|---|---|---|---|---|---|
| SG 8321 | 50 | Double-sided | None | ≥17 | Clear | Acrylic |
Adhesive: 260/175 Liner: 260/- |
Used for FPC attachment that requires high temperature processing |
| SG 8322 | 100 | ≥25 | ||||||
| SG 4002S | 20 | Single-sided |
Polyimide Film |
>10 | Matte Black | Acrylic |
Designed for high temperature applications and can be removed without residue. |
|
| SG 8882 | 22 | >8 | Yellow | |||||
| SG 8882B | 25 | >8 | Matte Black | |||||
| SG 8882B-100 | 100 | >15 | Matte Black | |||||
| SG 8882T | 30 | >10 | Matte Black | |||||
| SG PT004M | 40 | >8 | Black | |||||
| SG 8405M | 50 | >12 | Matte Black | |||||
| SG 8562 | 50 | > 8 | Matte Black |
High temperature resistance including reflow processing |
||||
| SG 4110D | 100 | >23 | Matte Black | |||||
| SG 1107H | 100 | >15 | Matte Black | |||||
| SG 8229 | 53 | ≥7 | Yellow | |||||
| SG 88621 | 41 | ≥7 | Yellow |
Note: Customizable solution is available upon request
