Thermal Interface Materials (TIMs)
EMI Shielding and Grounding Tapes
|

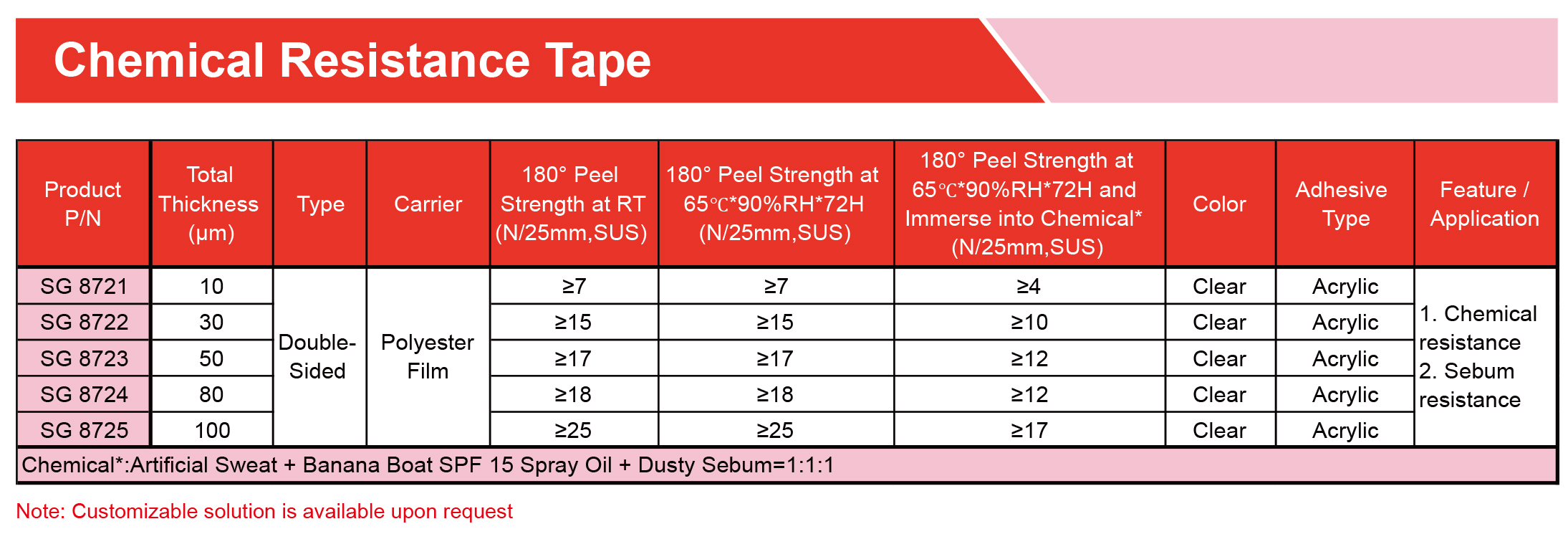

Product P/N |
Total Thickness (μm) |
Type | Carrier |
180° Peel Strength at RT (N/25mm,SUS) |
180° Peel Strength at 65℃*90%RH*72H (N/25mm,SUS) |
180° Peel Strength at 65℃ *90%RH*72H and Immerse into Chemical* (N/25mm,SUS) |
Color |
Adhesive Type |
Feature / Application |
|---|---|---|---|---|---|---|---|---|---|
| SG 8721 | 10 | Double- sided |
Polyester Film |
≥7 | ≥7 | ≥4 | Clear | Acrylic |
1. Chemical resistance 2. Sebum resistance |
| SG 8722 | 30 | ≥15 | ≥15 | ≥10 | Clear | Acrylic | |||
| SG 8723 | 50 | ≥17 | ≥17 | ≥12 | Clear | Acrylic | |||
| SG 8724 | 80 | ≥18 | ≥18 | ≥12 | Clear | Acrylic | |||
| SG 8725 | 100 | ≥25 | ≥25 | ≥17 | Clear | Acrylic | |||
| Chemical*:Artif icial Sweat + Banana Boat SPF 15 Spray Oil + Dusty Sebum=1:1:1 | |||||||||
Note: Customizable solution is available upon request
