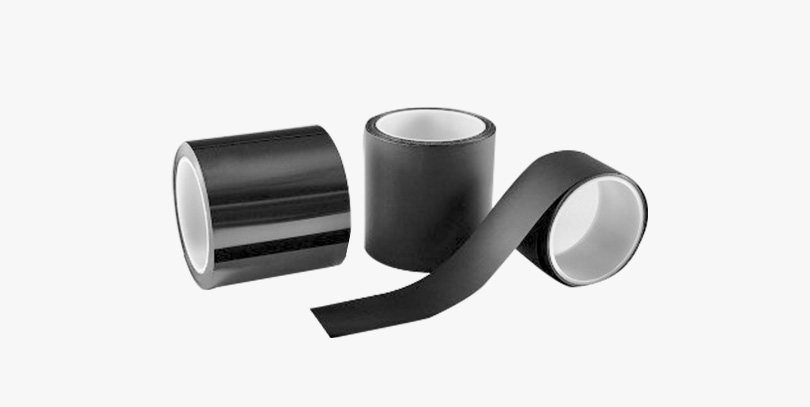

Polyplate™ S2-T Series consists of a black polyurethane foam with a special abrasion resistance coating. It is soft,slow rebound foams for cushioning, protective sealing and long-term gap filling in electronic device applications. S2-T Series foam has very low compression set, high sealing performance and super-excellent impact absorption.
| Description | P/N |
Thickness With Liner (mm)* |
Density (kg/m3) |

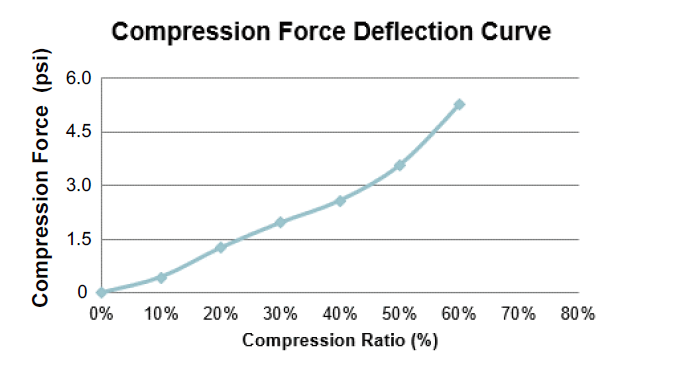

25% Compression Force Deflection (Psi) |
Compression Set (%) |
Suggested Max. Compression Ratio (%) |
Dynamic Fatigue (%) |
Continuous Use Temperature (℃) |
|---|---|---|---|---|---|---|---|---|
|
Soft and slow rebound |
PF-S2-T | 0.3~1.5 | 280 | 1.42~2.26 | <3 | 75 | <5 | -20 ~ 120 |
| Test Method | ASTM D3574 | ASTM D3574 | ASTM D3574 | ASTM D-746-98 |
Note: The thickness can be cust omized by request
