EMI Shielding Tape (Anti-Repulsion)

SG Shieldite EMI tape consists of black copper foil backing and conductive adhesive. The black coating layer has great abrasion resistance and good insulation performance, while the grounding tape offers strong adhesion strength and excellent electrical conductivity. It features medium softness, comparing to normal insulating EMI tape.

Tape Materials

Tapes

Thermal Materials

Thermal Interface Materials (TIMs)

Thermal Spreading Sheet

Nano Thermal Insulation Film

TIF Series Ultra-thin Nano Thermal Insulation Film

EMI/EMC Materials

EMI Shielding and Grounding Tapes

Electromagnetic Wave Absorbing Solutions

Foam Materials

Polyurethane (PU) Foam

Acrylic Foam

PA Series Acrylic Foam

Water-Proof Foam

Light-Blocking Foam

Acoustic Damping Foam

Silicone Foam

SF-S2 Series Microcellular Silicone Foam

Conductive Foam

Ultra-soft Foam

Ultra-soft Foam Tape

Label Materials

Labels

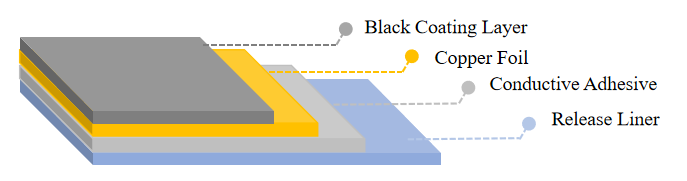

Product Structure

Features

• Excellent adhesion includes anti-repulsion properties
• Improved handling for ease of die cutting and lamination
• Very good chemical and temperature stability
• Great abrasion resistance and good insulation performance
• XY-conductivity of PSA

Product Properties

Properties	CU020	CU025	CU030	CU045	CU070	CU090	Test Method
Thickness(um)	20±5	25±5	30±5	45±10	70±10	90±10	ASTM D374
180° Peel Strength-SUS(N/cm)	4	4	6	6	8	8	ASTM D3330
Shielding Efficiency (@1GHz)	60	70	70	80	80	80	ASTM D4935
Color	Black						Visual
Adhesive Surface Resistance	0.1Ω/□						ASTM D257
Temperature Resistance Long Term / Short Term	120 / 260^oC						-
