Thermal Interface Materials (TIMs)
EMI Shielding and Grounding Tapes

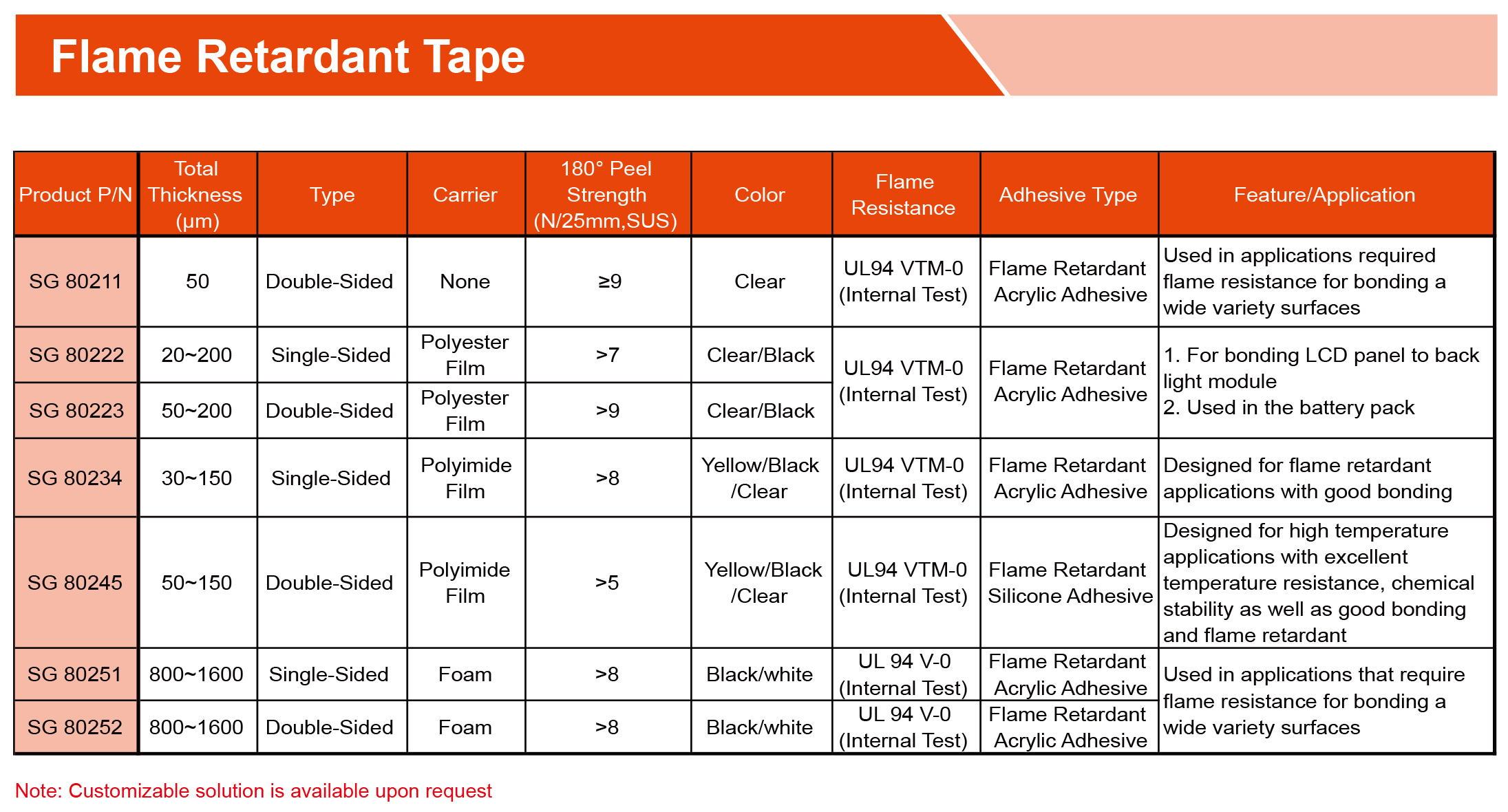

| Product P/N |
Total Thickness (μm) |
Type | Carrier |
180° Peel Strength (N/25mm,SUS) |
Color |
Flame Resistance |
Adhesive Type | Feature/Application |
|---|---|---|---|---|---|---|---|---|
| SG 80211 | 50 | Double-sided | None | ≥9 | Clear |
UL94 VTM-0 (Internal Test) |
Flame Retardant Acrylic Adhesive |
Used in applications require flame resistance for bonding a wide variety surfaces |
| SG 80222 | 20~200 | Single-sided | Polyester Film | >7 | Clear/Black |
UL94 VTM-0 (Internal Test) |
Flame Retardant Acrylic Adhesive |
1. For bonding LCD panel to back light module 2. Used in the battery pack |
| SG 80223 | 50~200 | Double-sided | Polyester Film | >9 | Clear/Black | |||
| SG 80234 | 30~150 | Single-sided | Polyimide Film | >8 | Yellow/Black/Clear |
UL94 VTM-0 (Internal Test) |
Flame Retardant Acrylic Adhesive |
Designed for flame retardant applications with good bonding |
| SG 80245 | 50~150 | Double-sided | Polyimide Film | >5 | Yellow/Black/Clear |
UL94 VTM-0 (Internal Test) |
Flame Retardant Silicone Adhesive |
Designed for high temperature applications with excellent temperature resistance, chemical stability as well as good bonding and flame retardant |
| SG 80251 | 800~1600 | Single-sided | Foam | >8 | Black/white |
UL 94 V-0 (Internal Test) |
Flame Retardant Acrylic Adhesive |
Used in applications that require flame resistance for bonding a wide variety surfaces |
| SG 80252 | 800~1600 | Double-sided | Foam | >8 | Black/white |
UL 94 V-0 (Internal Test) |
Flame Retardant Acrylic Adhesive |
Note: Customizable solution is available upon request
