ER Series Flexible Ferrite Sheet

SG Shieldite^TM ER Series is a thin sintered high magnetic permeability ferrite plate sealed between PET film and pressure sensitive adhesive. This product effectively solves the interference effect on RX antenna module in the metal surrounding environment.

Tape Materials

Tapes

PSA for Foldable Screen

Removable Tape

EMl Tapes and Gaskets

Heat / UV Activation Bonding Film

Thermal Materials

Thermal Interface Materials (TIMs)

Thermal Spreading Sheet

Nano Thermal Insulation Film

EMI/EMC Materials

EMI Shielding and Grounding Tapes

Electromagnetic Wave Absorbing Solutions

Foam Materials

Polyurethane (PU) Foam

Acrylic Foam

Acrylic Foam PA Series

Water-Proof Foam

Light-Blocking Foam

Acoustic Damping Foam

Silicone Foam/Rubber

Conductive Foam

Ultra-soft Foam

Ultra-soft Foam Tape

Label Materials

Labels

ER130 / ER150 / ER170 / ER200

Description

SG ShielditeTM ER Series is a thin sintered high magnetic permeability ferrite plate sealed between PET film and pressure sensitive adhesive. This product effectively solves the interference effect on RX antenna module in the metal surrounding environment.

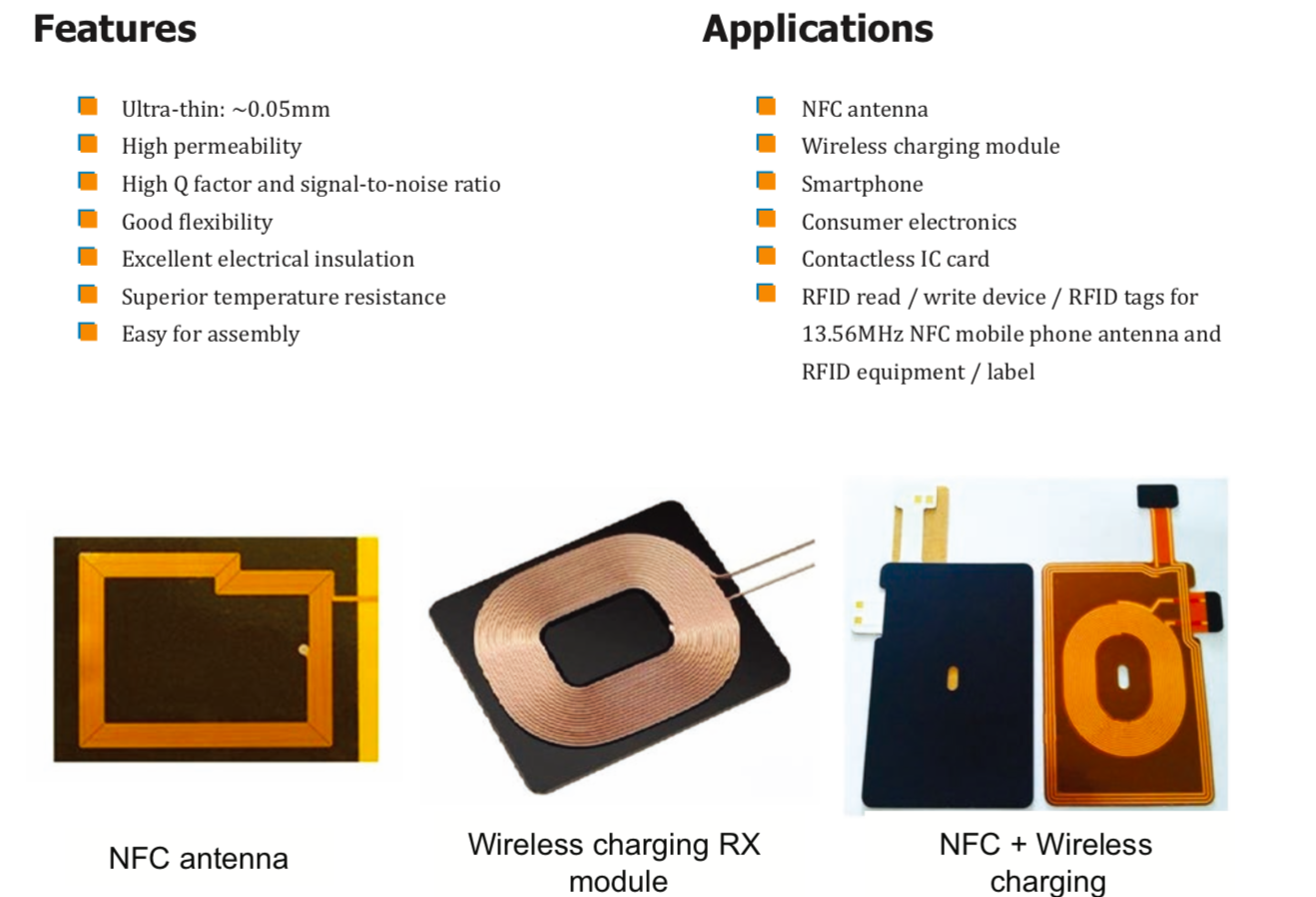

Features

Ultra-thin: ~0.05mm
High permeability
High Q factor and signal-to-noise ratio
Good flexibility
Excellent electrical insulation
Superior temperature resistance
Easy for assembly

Applications

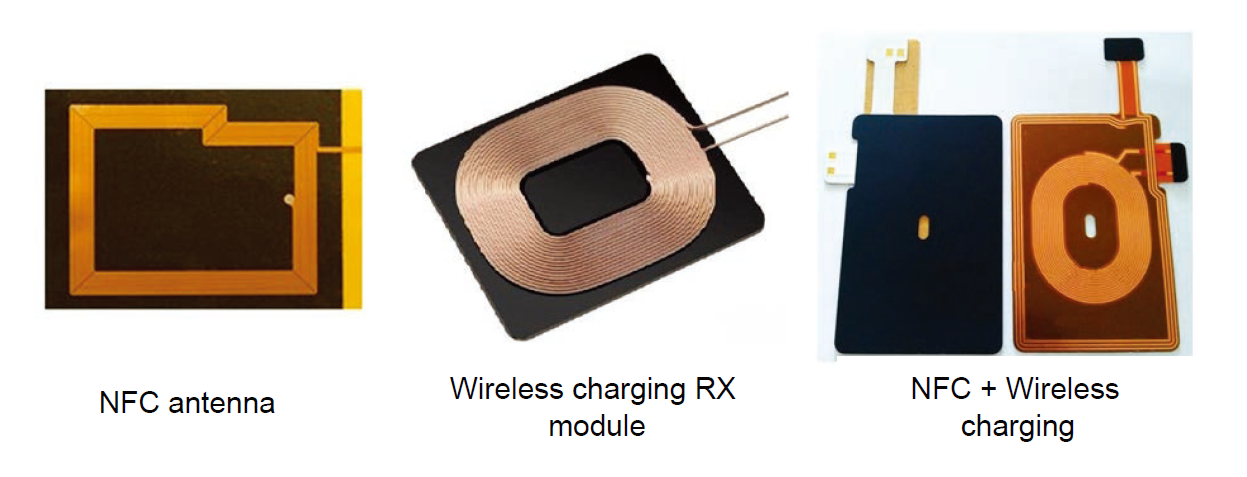

NFC antenna
Wireless charging module
Smartphone
Consumer electronics
Contactless IC card
RFID read / write device / RFID tags for 13.56MHz NFC mobile phone antenna and RFID equipment / label

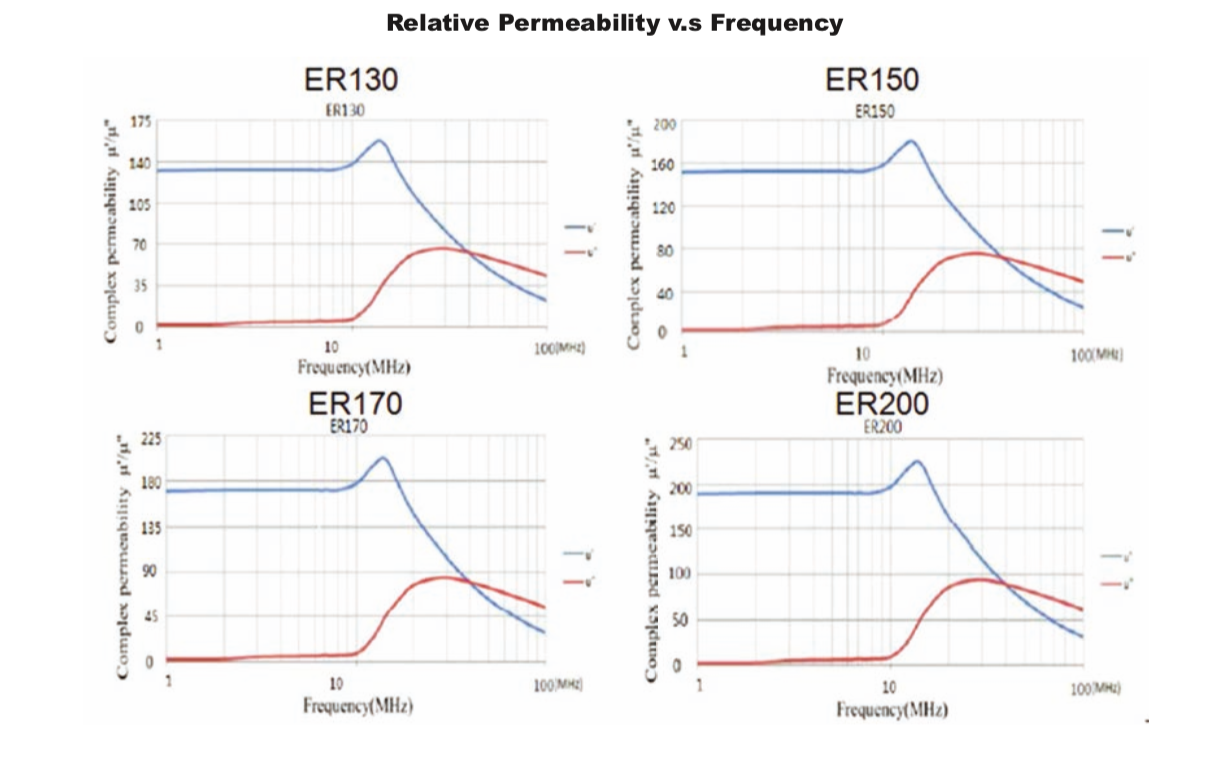

Typical Properties

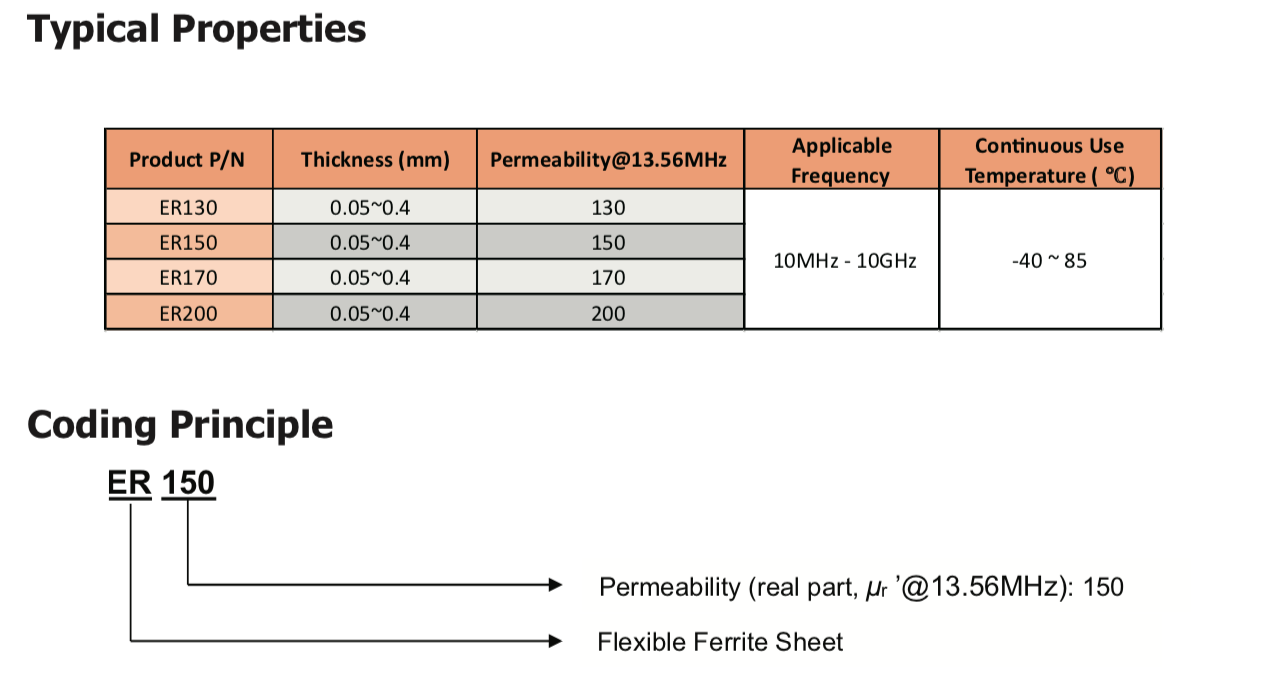

Product P/N	Thickness (mm)	Permeability@13.56MHz	Applicable Frequency	Continuous Use Temperature ( ℃)
ER130	0.05~0.4	130	10MHz - 10GHz	-40 ~ 85
ER150	0.05~0.4	150
ER170	0.05~0.4	170
ER200	0.05~0.4	200

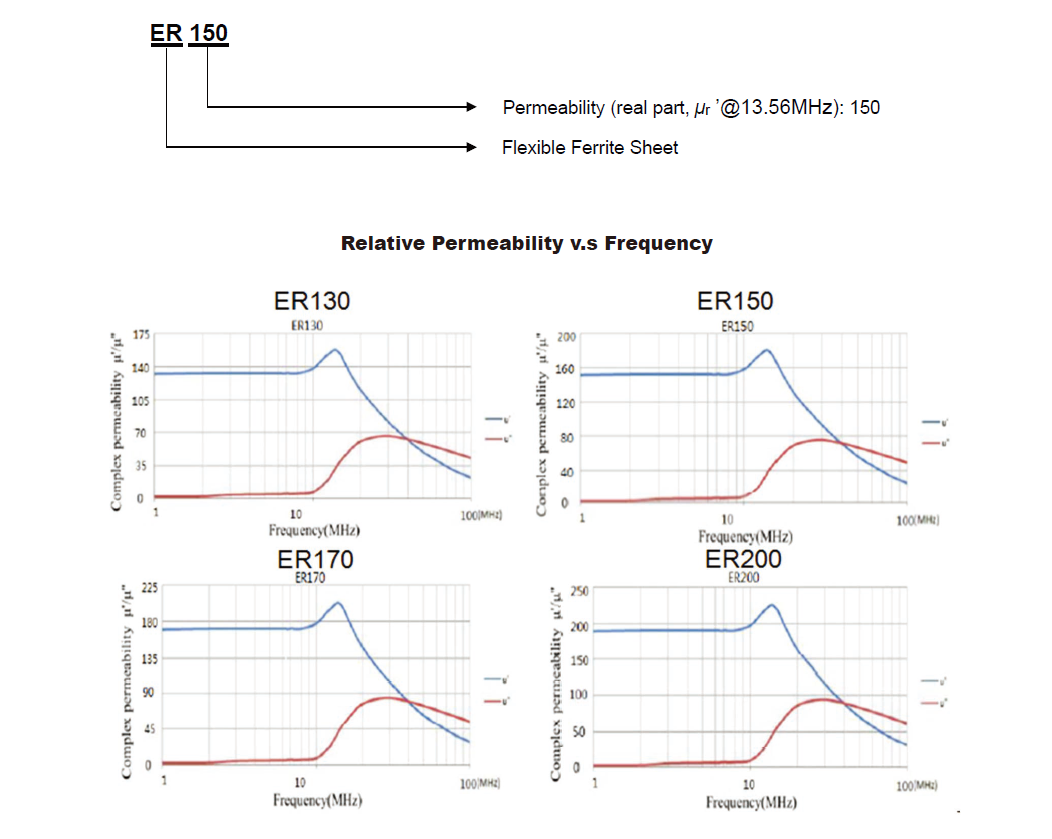

Coding Principle

Previous: ABH300 Dispensable Absorber Next: EP Series Flexible Magnetic Absorber
