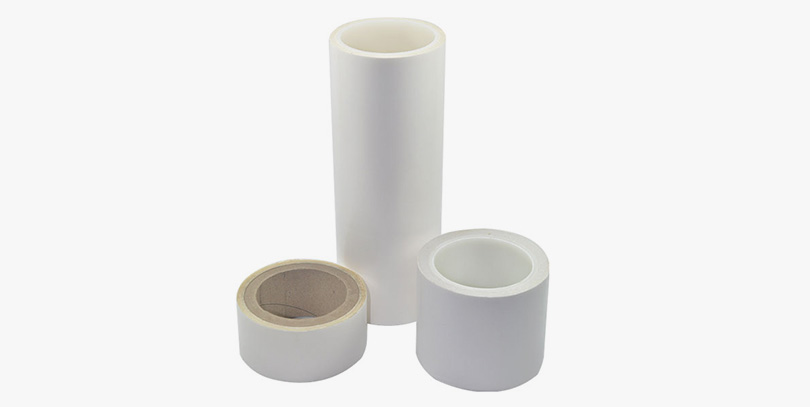

Polyfilm™ AFT Series Waterproof Foam Tape is a double-sided tape, which consists of an acrylic foam and an acrylic adhesive. This waterproof foam tape is very thin and soft due to its micro and independent cell structure. It features high impact absorption, excellent waterproof performance, great dustproof performance, and rebound resilience.

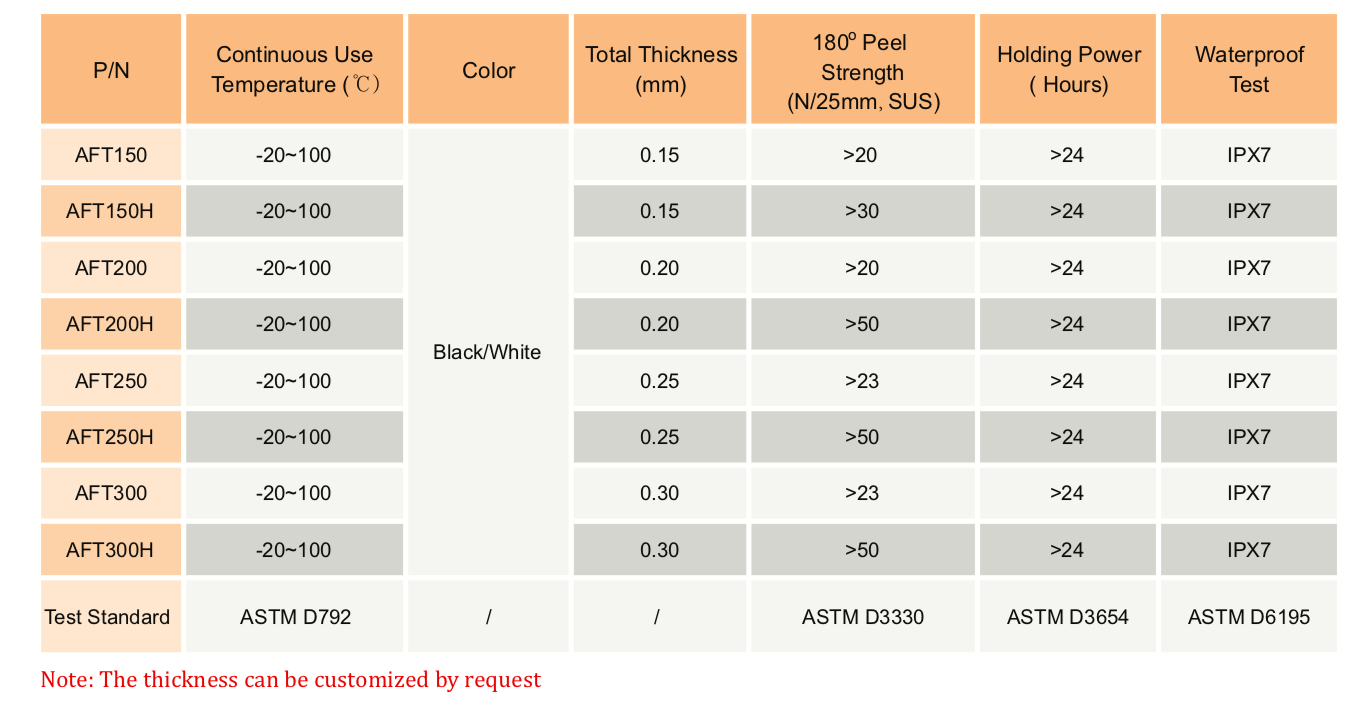

| P/N |
Continuous Use Temperature (℃) |
Color |
Total Thickness (mm) |
180o Peel Strength ( N/25mm, SUS) |
Holding Power ( Hours) |

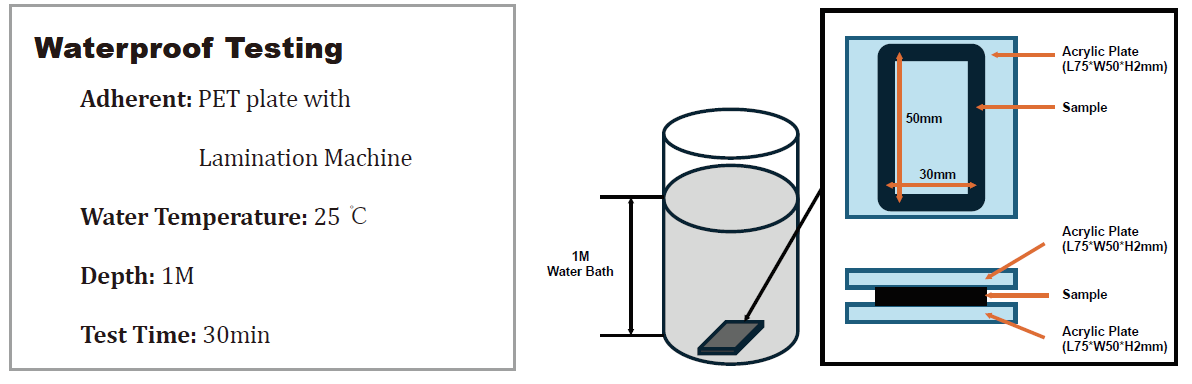

Waterproof Test |
|---|---|---|---|---|---|---|
| AFT150 | -20~100 | Black/White | 0.15 | >20 | >24 | IPX7 |
| AFT150H | -20~100 | 0.15 | >30 | >24 | IPX7 | |
| AFT200 | -20~100 | 0.20 | >20 | >24 | IPX7 | |
| AFT200H | -20~100 | 0.20 | >50 | >24 | IPX7 | |
| AFT250 | -20~100 | 0.25 | >23 | >24 | IPX7 | |
| AFT250H | -20~100 | 0.25 | >50 | >24 | IPX7 | |
| AFT300 | -20~100 | 0.30 | >23 | >24 | IPX7 | |
| AFT300H | -20~100 | 0.30 | >50 | >24 | IPX7 | |
| Test Standard | ASTM D792 | / | / | ASTM D3330 | ASTM D3654 | ASTM D6195 |

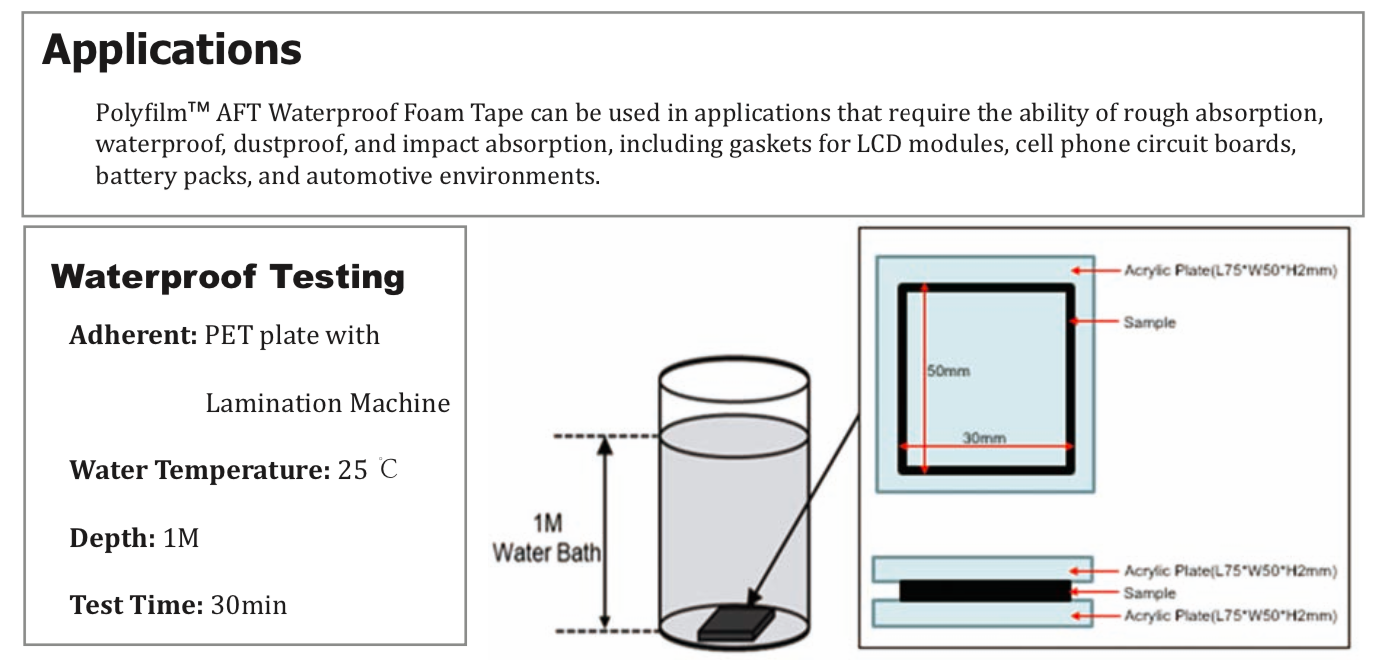

Polyfilm™ AFT Waterproof Foam Tape can be used in applications that require the ability of rough absorption, waterproof, dustproof, and impact absorption, including gaskets for LCD modules, cell phone circuit boards, battery packs, and automotive environments.
