| Product P/N | Color |
Thickness (μm) |
Type | Carrier |
Cross Hatch (HC) |
Pencil Hardness (HC) |
OD |
Water Contact Angle |
PET Side |
PVD Side |
Feature / Application | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | a | b | L | ||||||||||

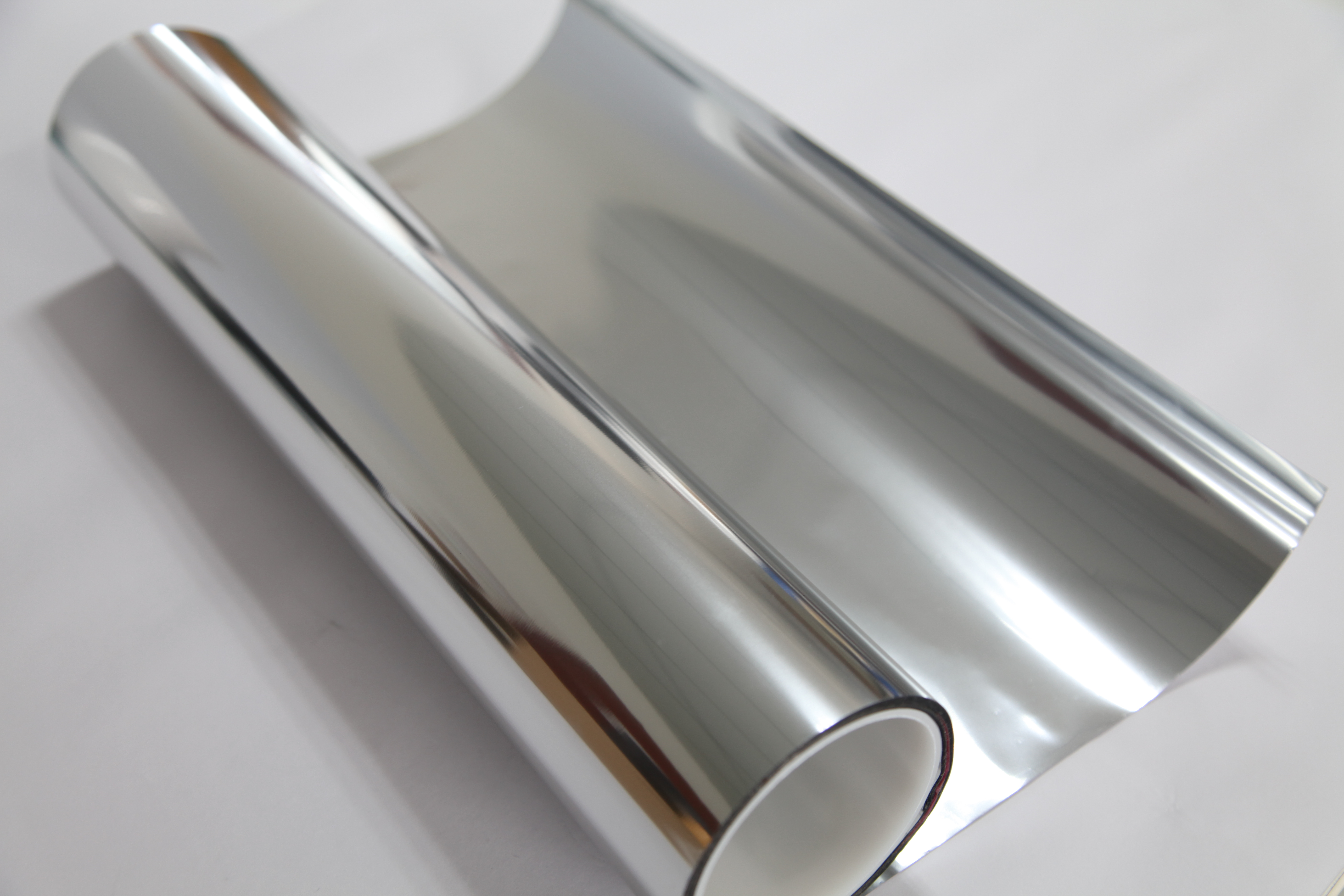

| SG RWPF0040D-5i | Silver | 42 |
PVD on PET |
Polyester Film |
≥4B | ≥HB | ＞3 | 97±7 | 94±2.5 | -0.7±1 | -4±1 | ＜75 |
1. Excellent shading properties, optical reflectivity 2. Great surface friction, alcohol and oxidation resistance |

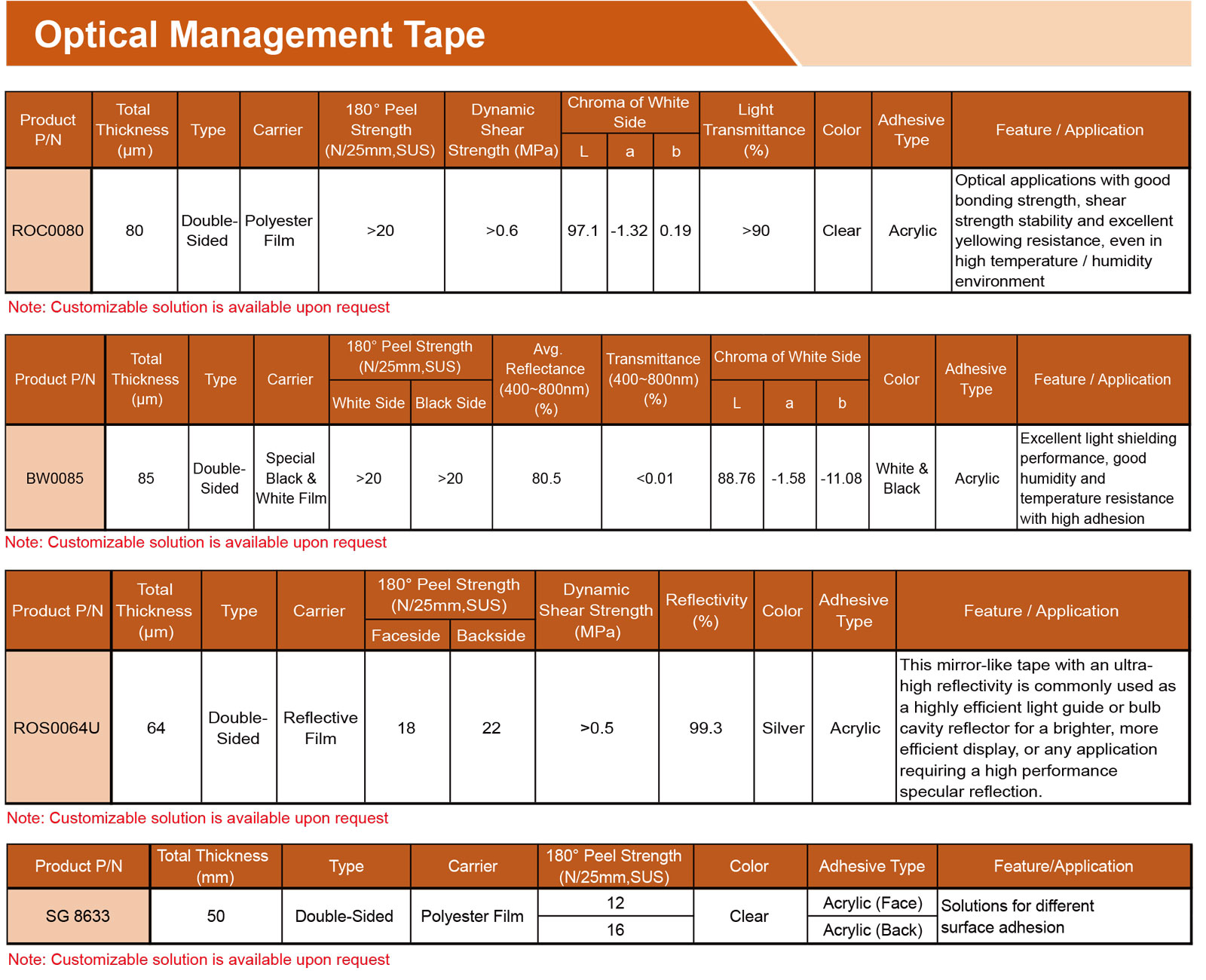

| Product P/N | Color |
Thickness (μm) |
Type | Carrier |
180° Peel Strength (N/25mm, SUS) |
Avg. Reflectance (400~800nm) (%) |
Transmittance (400~800nm) (%) |
Chroma of White Side |
Adhesive Type |
Feature / Application | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| White Side | Black Side | L | a | b | |||||||||
| SG BW0085 |
White & Black |
85 | Double-sided |
Special Black & White Film |
>20 | >20 | 80.5 | <0.01 | 89 | -2 | -11 | Acrylic |
Excellent light shielding performance, good humidity and temperature resistance with high adhesion |
| Product P/N | Color |
Thickness (μm) |
Type | Carrier |
180° Peel Strength (N/25mm,SUS) |
Dynamic Shear Strength (MPa) |
Reflectivity (%) |
Adhesive Type |
Feature / Application | |
|---|---|---|---|---|---|---|---|---|---|---|
| Faceside | Backside | |||||||||
| SG ROS0064U | Silver | 64 | Double-sided |
Reflective Film |
18 | 22 | >0.5 | 99.3 | Acrylic |
This mirror-like tape with an ultra- high reflectivity is commonly used as a highly efficient light guide or bulb cavity reflector for a brighter, more efficient display, or any application requiring a high performance specular reflection |
| SG 8105W-1 | White | 50 | Single-sided |
White Reflective PET Film |
16 | / | / |
420-740nm ＞60% |
Acrylic |
1. Excellent bonding effect 2. Excellent cleanliness under clean production environment 3. Very good chemical and temperature stability Excellent reflectivity |
| SG 8303W | White | 30 | Single-sided |
White Polyester Film |
≥11.76 | / |
450nm ＞76% |
Acrylic |
1. Excellent bonding effect 2. Excellent cleanliness under clean production environment 3. Very good chemical and temperature stability 4. Excellent reflectivity |
|
Note: Customizable solution is available upon request
