TCG-60M Liquid Metal Thermal Grease Hybrid
TCG-60M Liquid Metal Thermal Grease Hybrid combines the low thermal resistance benefits of liquid metals while maintain the easy workability of traditional thermal grease. It can also be electrically insulated during application process to avoid damaging highly sensitive electronics.

Advantage:

◆ High thermal conductivity

◆ Long working life

◆ Excellent reliability

◆ Environmentally-friendly and non-toxic


Properties

Unit

TCG-60M

Test Method

Color

/

Gray

Visual

Appearance

/

Grease

/

Viscosity

mPa·s

360000

ASTM D445

Specific Gravity

g/cm3

2.5

ASTM D792

Thermal Impedance@40psi

oCin2/W

0.004

ASTM D5470

Thermal Conductivity

W/m·k

7.0

ASTM D5470

Dielectric Strength

KV/mm

0.8

ASTM D149

Volume Resistivity @100V DC

Ω·cm

1012

ASTM D257

Usage Temperature

oC

-50~200

/

Corrosivity

/

No

/


Thermal Resistance Comparison Test

Liquid metal thermal grease has a lower thermal resistance compared to industry standard  Al/Zn based thermal grease


Application:

◆ Can be used on: Copper, silicon, nickel, and nickel plated aluminum and other  alloys

◆ Method

      Can be applied with a brush to achieve thickness under 0.3mm

       Screen printing process

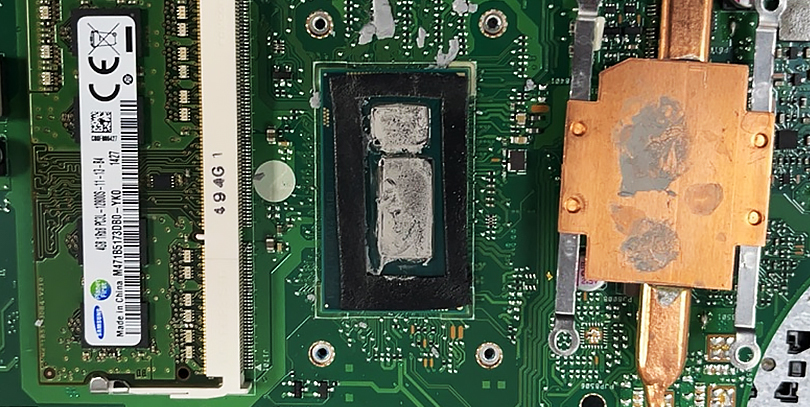

◆ Liquid metal overflow prevention solution

      ◆ Silicone foam /EPDM foam Gasket can used as dam/fence
