Polyplate™ 80160 Series Light-Blocking Foam Tape

Polyplate™ 80160 Series Light-Blocking Foam Tape is a kind of double-sided tape, which consists of special foam and acrylic adhesive. It features high impact absorption, excellent light blocking performance and high sealing performance.

Properties

Item		Unit	Typical Value	Test Method
Color		-	Black	Visual
Thickness		mm	0.1 ~0.2	ASTM D374
180° Peel Strength	SUS	N/inch	≥ 15	ASTM D3330
Holding Power		85℃，1kg	＞24H	ASTM D1002
Optical Density			≥ 6	ASTM D1003

Feature

Excellent light blocking properties
Low compression set, high sealing performance
No particle issue

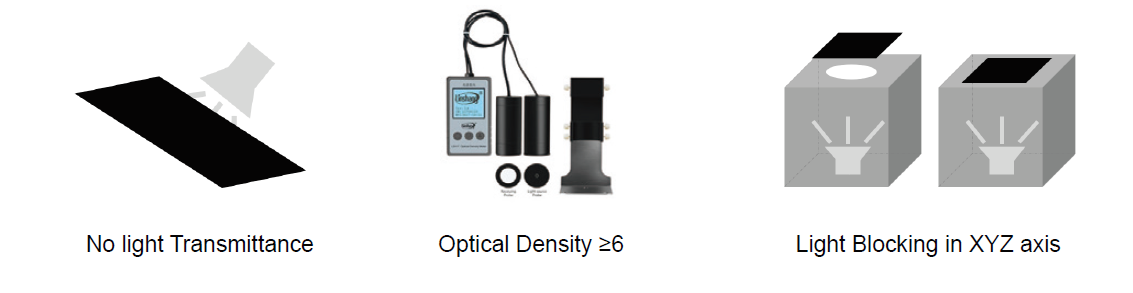

Performance Test

Application

Light blocking/fixation, sealing/cushion in backlight module, camera module.
