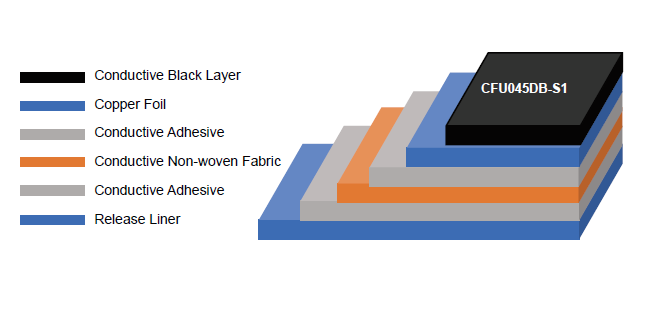

Shieldite™ CFU045DB-S1 is a single sided black super soft foil conductive tape which consists of black copper foil backing and conductive non-woven embedded conductive adhesive. CFU045DB-S1 not only provides excellent volume conductivity for reliable contacts to small grounding area but also enhances the physical properties of the tape for good workability. It also has excellent scratch resistance performance and good bending capability to against delamination from bending area.

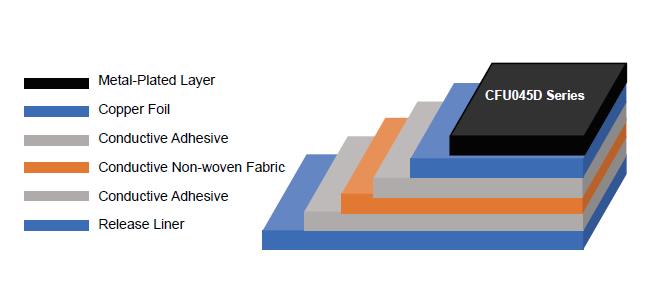

ShielditeTM CFU045D series is a singlet-sided super soft foil conductive tape which consists of Matel-plated copper foil backing and conductive non-woven embedded conductive adhesive. CFU045D series not only provides excellent electrical conductivity to grounding area but also has good workability. It has excellent scratch resistance performance and good bending capability against delamination from the bending area, along with superior anti-aging and salt-spray resistance performance.
| P/N |
Thickness (um) |
Backing | Color |
180° Peel Strength-SUS (N/25mm) |
Shielding Efficiency (@1GHz) |
Backing Resistance Xy- (ohms) |
Adhesive Resistance Xy- (ohms) |
Electrical Resistance z- (ohms) |
|---|---|---|---|---|---|---|---|---|
| SG CFU045DB-S1 | 50 | Black Ink | Black | 15 | ≥60 | <0.1 | <0.1 | <0.05 |
| SG CFU045DN | 45 | Nickel | Gray | 15 | ≥60 | <0.05 | <0.1 | <0.05 |
| SG CFU045DG | 45 | Gold | Gold | 15 | ≥60 | <0.05 | <0.1 | <0.05 |
| SG CFU045DT-S1 | 45 | Tin | Gray | 15 | ≥60 | <0.05 | <0.1 | <0.05 |
