CSRF045 Form-In-Place EMI Gasket

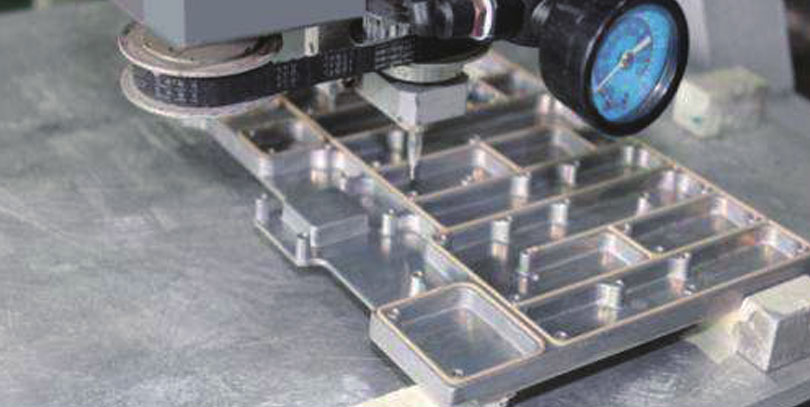

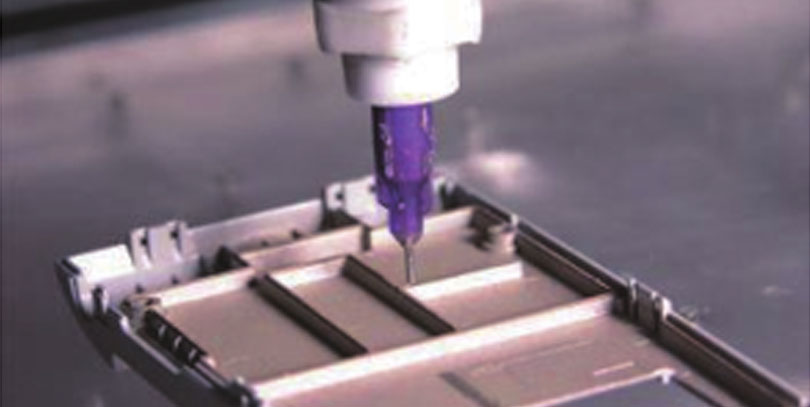

Shieldite^TM CSRF045 Form-In-Place EMI Gasket is a conductive elastomeric material coated by FIP automatic system. It has excellent electrical conductivity and elasticity, which can provide good EMI shielding effectiveness and tightness. It also has good adhesion to various matrixes, such as conductive coating film, die casting and metal coating.

Tape Materials

Tapes

PSA for Foldable Screen

Removable Tape

EMl Tapes and Gaskets

Heat / UV Activation Bonding Film

Thermal Materials

Thermal Interface Materials (TIMs)

Thermal Spreading Sheet

Nano Thermal Insulation Film

EMI/EMC Materials

EMI Shielding and Grounding Tapes

Electromagnetic Wave Absorbing Solutions

Foam Materials

Polyurethane (PU) Foam

Acrylic Foam

Acrylic Foam PA Series

Water-Proof Foam

Light-Blocking Foam

Acoustic Damping Foam

Silicone Foam/Rubber

Conductive Foam

Ultra-soft Foam

Ultra-soft Foam Tape

Label Materials

Labels

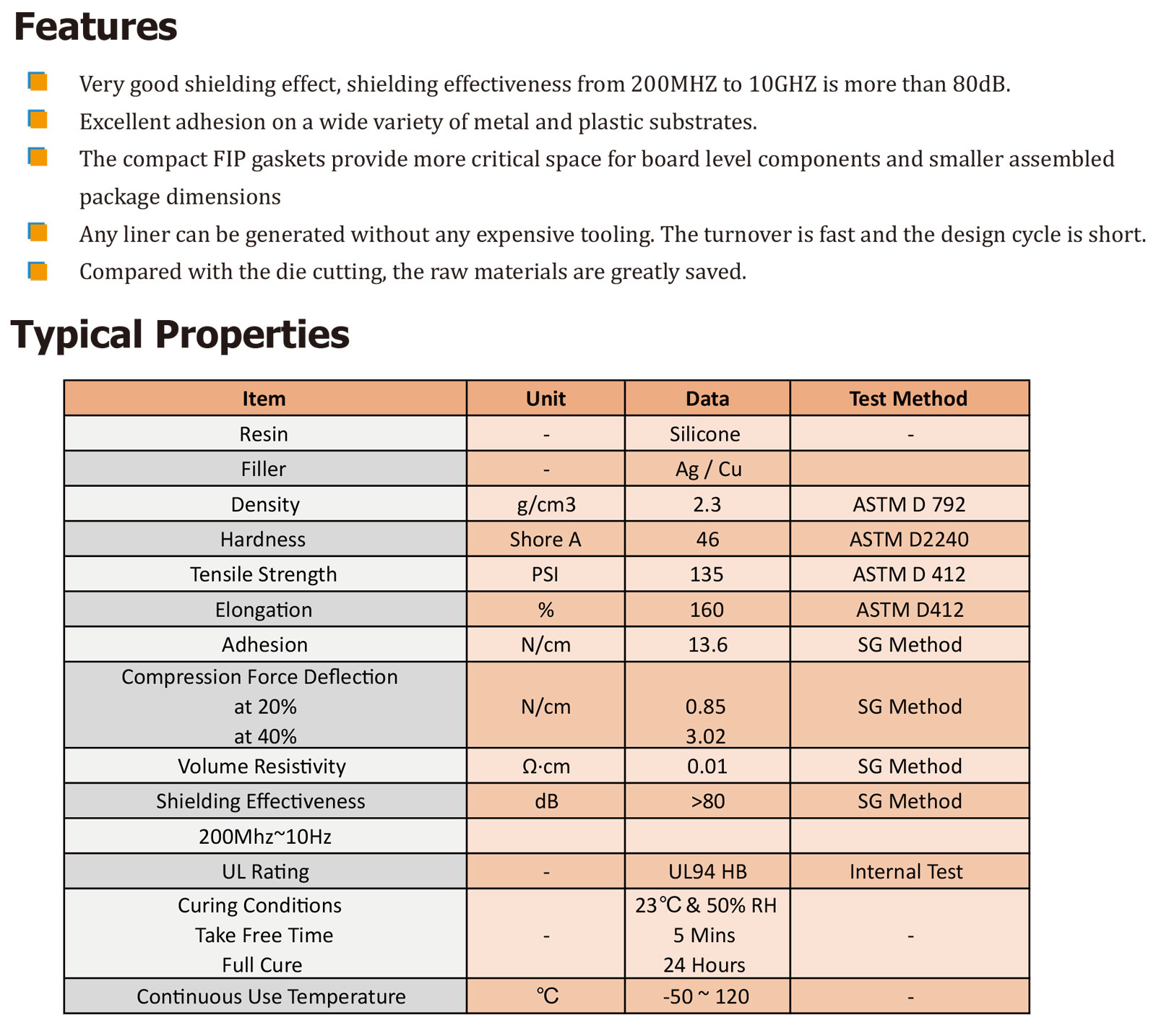

Features

Very good shielding effect, shielding effectiveness from 200MHZ to 10GHZ is more than 80dB.
Excellent adhesion on a wide variety of metal and plastic substrates.
The compact FIP gaskets provide more critical space for board level components and smaller assembled
package dimensions
Any liner can be generated without any expensive tooling. The turnover is fast and the design cycle is short.
Compared with the die cutting, the raw materials are greatly saved.

Item	Unit	Data	Test Method
Resin	-	Silicone	-
Filler	-	Ag/Cu
Density	g/cm₃	2.3	ASTM D792
Hardness	Shore A	46	ASTM D2240
Tensile Strength	PSI	135	ASTM D412
Elongation	%	160	ASTM D412
Adhesion	N/cm	13.6	SG Method
Compression Force Deflection at 20% at 40%	N/cm	0.85 3.02	SG Method
Volume Resistivity	Ω·cm	0.01	SG Method
Shielding Effectiveness	dB	>80	SG Method
200Mhz~10Hz
UL Rating	-	UL94 HB	Internal Test
Curing Conditions Take Free Time Full Cure	-	23℃&50% RH 5 Mins 24 Hours	-
Continuous Use Temperature	°C	‐50~120	-
