Products
EMI/EMC Materials
Thermal Interface Materials (TIMs)
EMI Shielding and Grounding Tapes
(Conductive fabric,conductive PI etc.)
Functions:electrical conductive and shielding
(PI,PC,PET etc.)
Functions: increase the contour and improve the
product resilience
Functions: bonding and electrical conductive

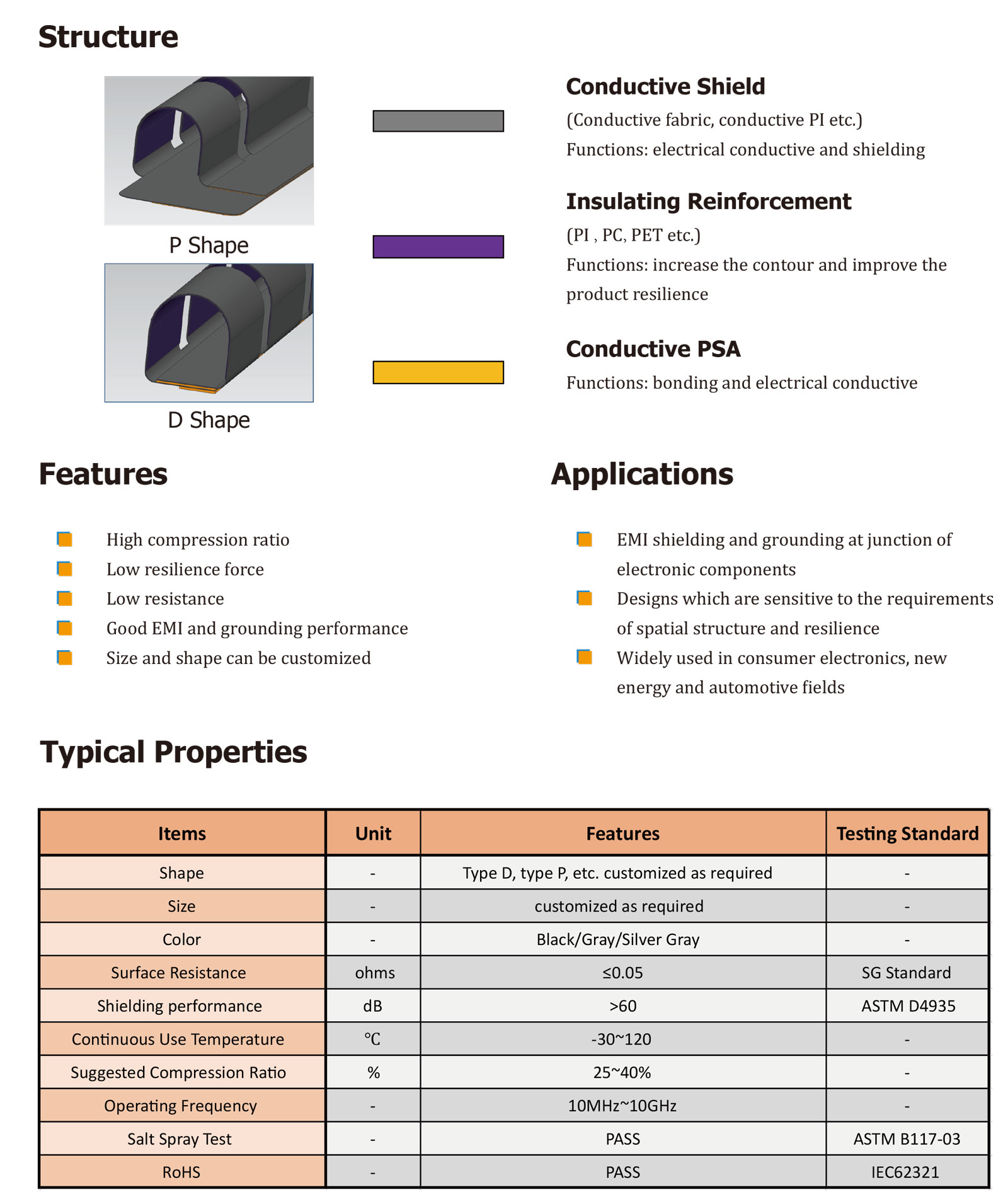

| Items | Unit | Features | Testing Standard | |
|---|---|---|---|---|
| Shape | - | Type D, type P, etc. customized as required | - | |
| Size | - | customized as required | - | |
| Color | - | Black/Gray/Silver Gray | - | |
| Surface Resistance | ohms | ≤0.05 | SG Standard | |
| Shielding performance | dB | >60 | ASTM D4935 | |
| Continuous Use Temperature | ℃ | -30~120 | - | |
| Suggested Compression Ratio | % | 25~40% | - | |
| Operating Frequency | - | 10MHz~10GHz | - | |
| Salt Spray Test | - | PASS | ASTM B117-03 | |
| RoHS | - | PASS | IEC62321 | |
